Semiconductor Test Equipment

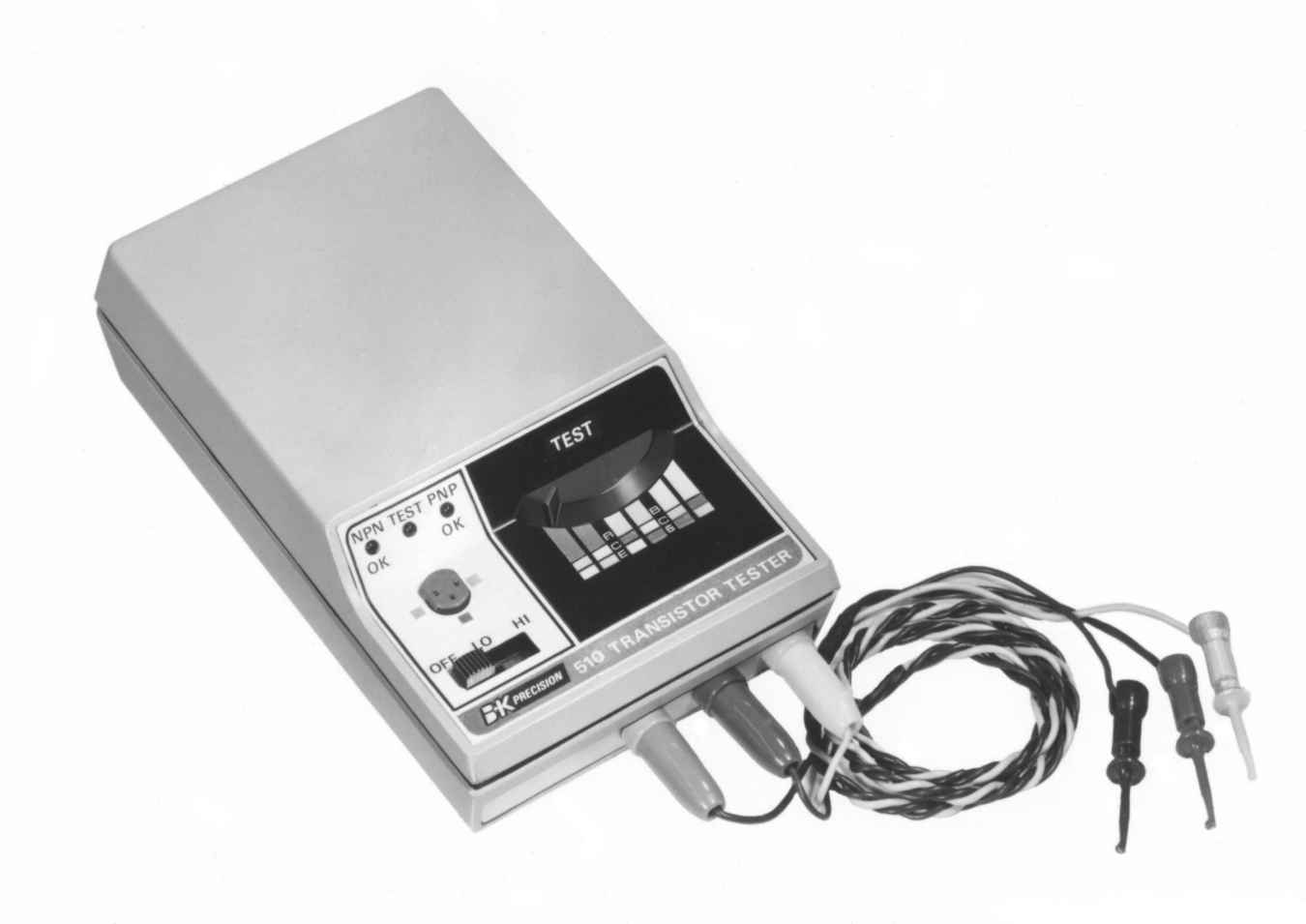

B&K Portable Transistor Tester

SPECIFICATIONS: In/Out-of-Circuit Tests:Good/Bad Test: Transistors, FETs, SCRS & Darlingtons. Identifies:

Transistors as NPN or PNP, FET as N- or P-channel. Identifies: FET-gate lead, all leads of transistors in LO drive; base lead in HI drive & SCR.Applied Test Currents:Base Drive: 250 mA (Hi) or 1 mA (Lo) at 2% duty cycle. Collector Drive: 125 mA at 2% duty cycle. Test Repetition rate: 5Hz.In-Circuit Shunt Limits for Good/Bad Test:Resistance: Down to 10 ohms with Hi drive; down to 1.5K ohms

with Lo drive. Capacitance: Up to 25 uF with Hi drive; up to 0.3 uF with Lo drive.

General:Power: 6 VDC from four "AA" batteries, not included. Standby

current, 4 mA; average testing current, 12 mA. Dimensions (HxWxD):

1.75 x 3.75 x 6.6" (4 x 9.5 x 17cm). Weight: 1 lb. (0.45kg). Accessories Supplied: Includes three test leads with mini-lock clips, carrying case, and instruction manual.

Part No. 3T7-520

Reg $265.00

Now only
$165.00

SAVE $100.00 OFF !

We also handle over 50 types of DMM’s. If you want B+K, Wavetek, ARI, Mercer, Global, we got them all. Try us today and save. Please note, items listed above are limited quantities and subject to being sold, hurry and call today!

Updated April 24, 2000
