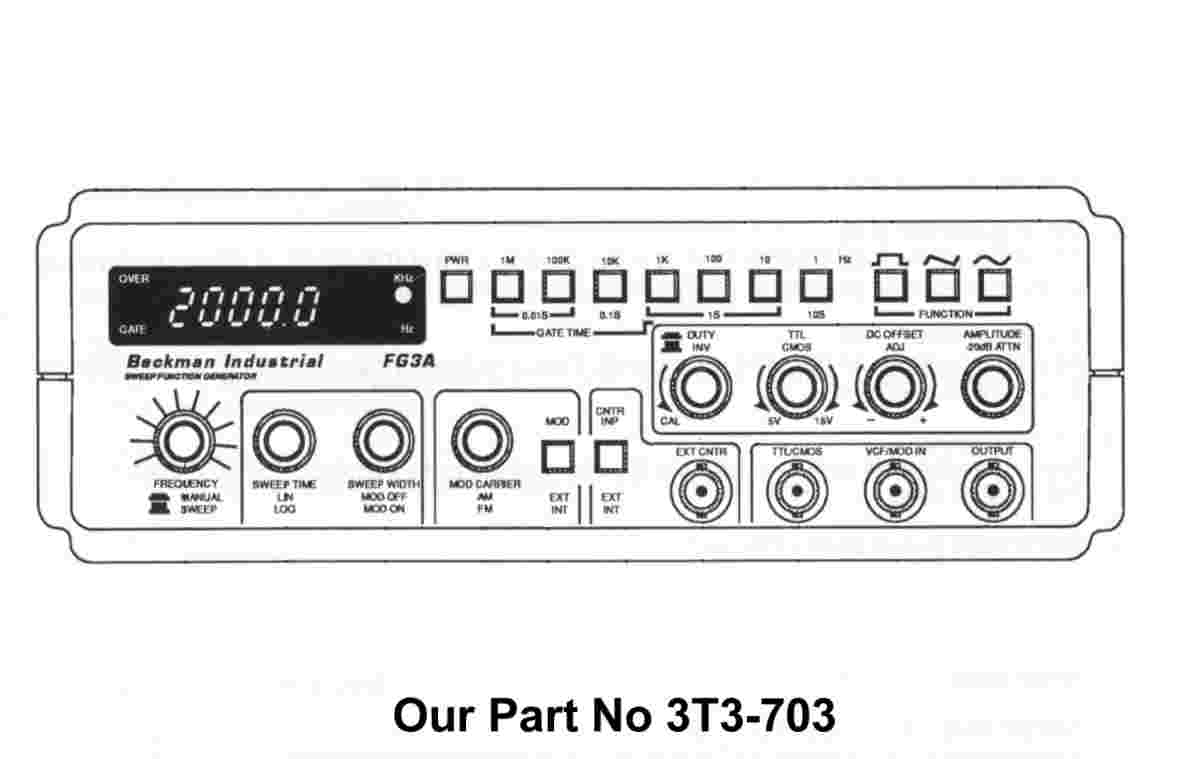

Part No.3T3-703
Reg Price $499.95
SALE PRICE $465.00
High quality / Low Price
A quality name for quality test equipment
.2MHZ Sweep Function Generator
Wavetek MODEL FG3B
* Sine, square, triangle, TTL & CMOS outputs
* 7 Frequency ranges from 0.2Hz to 2MHz * Linear or Logarithmic sweep z
* Internal/external AM or FM * Built-in 5-Digit frequency counter with external input.
* Voltage controlled frequency (VCF)* Switchable 20dB output Attentuator * Variable duty cycle
The FG3B Sweep Function Generator features outstanding versatility and performance with five signals available: sine wave, triangle wave, square wave, TTL and CMOS pulse outputs. The FG3B can provide linear or logarithmic sweep of any of the selected signal outputs, or perform either amplitude or frequency modulation with internal or external modulating frequencies. Duty cycle control allows the 50% duty cycle of the output signals to be changed to any desired value, which can be used to produce short duration pulses or sawtooth (ramp) signals. The invert button allows you to change polarity of the signal. A built-in 5-digit frequency counter eliminates the need to connect an external counter for accurate verification of frequency settings. In addition, it can be used as a stand alone counter for measuring external signals up to 10MHz with excellent accuracy and 25mV sensitivity. A voltage controlled frequency option allows the user to vary frequency as a function of the VCF input. A switchable 20dB output attentuator is available where low signal levels are needed.
SPECIFICATIONS:
Frequency ranges: 1Hz - 0.2 to 2.0Hz. 10Hz - 2.0 to 20 Hz. 100Hz - 20 to 200Hz. 1kHz - 0.2 to 2.0kHz. 10kHz - 2.0 to 20kHz. 100kHz - 20 to 200kHz. 1MHz - 0.2 to 2.0MHz. Output amplitude: >>20Vpp (open circuit) >>10Vpp (into 50ohm load). Impedance: 50 ohm+-6%. Attentuator: -20dB+-dB (at 1kHz) DC offset control: -10V to +10V (open circuit) -5V to +5V (into 50 ohm load). Duty cycle control: 1:1 to 10:1 continuously variable. Sine wave section: Distortion: <<1% 0.2Hz to 200kHz. Flatness: << 0.2dB, 0.2Hz to 100kHz. <<1dB, 100kHz to 2MHz. Triangle wave section: Linearity: >>98%, 0.2Hz to 100kHz. >>95%, 100kHz to 2MHz. Square wave section: Symmetry: <<2%, 0.2Hz to 100kHz. Rise or fall time: <<120nS. CMOS Output: High level adjustable: 4V (+-1V to 14.5V (+-0.5V) Rise time/fall time: << 25nS. Voltage controlled frequency (VCF) Input voltage range: 0V to 10VV (+-1V) input for 1000:1 frequency ratio. Input impedance: 10k ohm+-10%. Frequency counter section: Input source: internal or external (INT/EXT switch) Frequency range: 0.2 Hz to 2MHz INT. 5Hz to 10MHz EXT. Accuracy: +- Time base accuracy +-1 count. Time base: Oscillation frequency 10 MHz, temperature stability +-10ppm (23 degrees+-5 degrees C). Resolution: 0.1Hz, 1Hz, 10Hz, 100Hz. Sensitivity: <<+25mVRMS. Sweep operation: Sweep/Manual: Switch selector. Sweep width: 1000:1 ratio max. Adjustable. Sweep time: 0.5 seconds to 30 seconds (+-2S) adjustable. Sweep mode: Linear or logarithmic (LIN/LOG) switch. Amplitude modulation: Depth: 0-100% (+-3% at high end). Modulation frequency: 400Hz (INT), DC to approx. 1MHz (EXT). Carrier bandwidth: 100Hz to 2MHz (-3dB) EXT Sensitivity: << 10Vpp for +-5% modulation. Frequency modulation: Deviation: 0-+-5%. Modulation frequency: 400Hz (INT). DC to approx>> 20kHz (EXT). EXT sensitivity: <<10Vpp for +-5% modulation Display: 5-digit 0.3-inch LED. Frequency range: 0.2Hz to 2MHz in 7 ranges. Power 117VAC or 234VAC, 50Hz or 60Hz. Inputs: VCF/Modulation and external counter. Outputs: Sine wave, square wave, triangle wave, TTL pulse, and CMOS pulse, (with sweep, amplitude and frequency modulation, and duty cycle controls. Dimensions: (HxWxD) 3.125"x9"x13". Weight: 4.4 lbs. Accessories: AC power cord, coaxial test cables, fuses, and manual. Warranty: 1 year.
